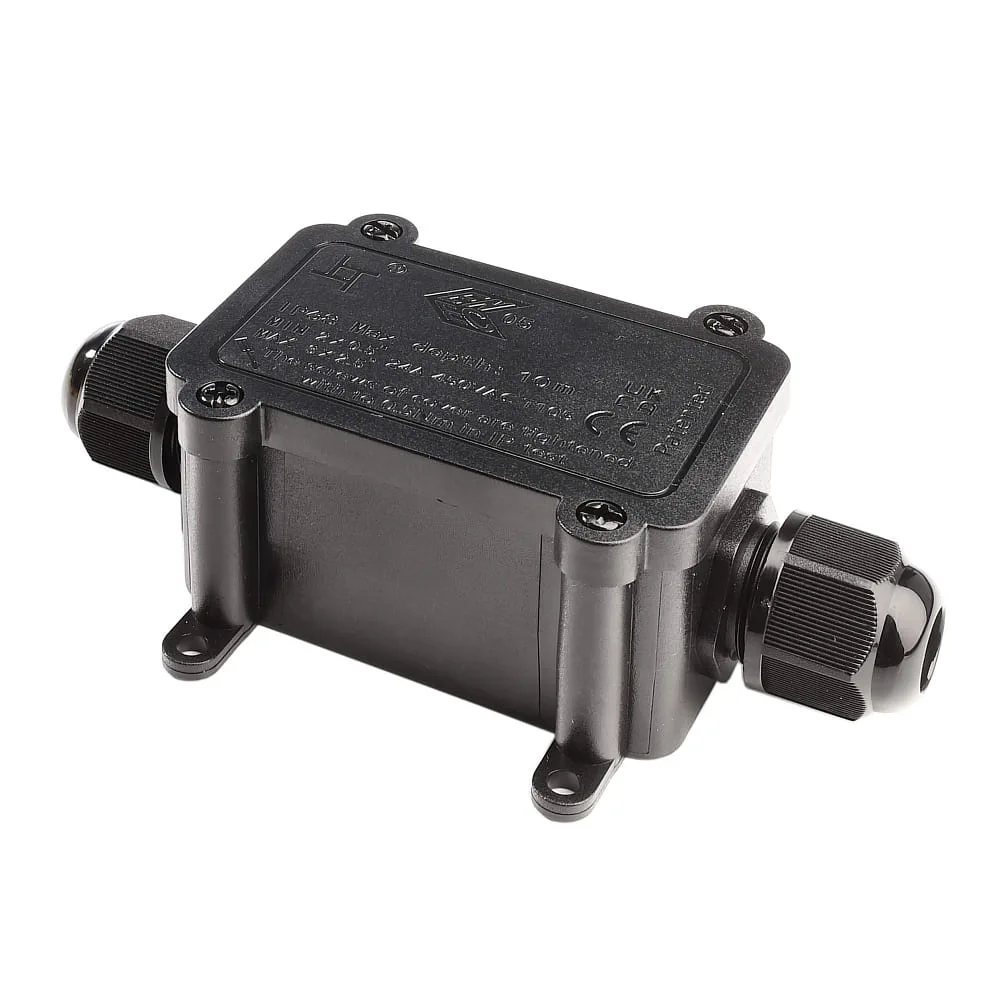

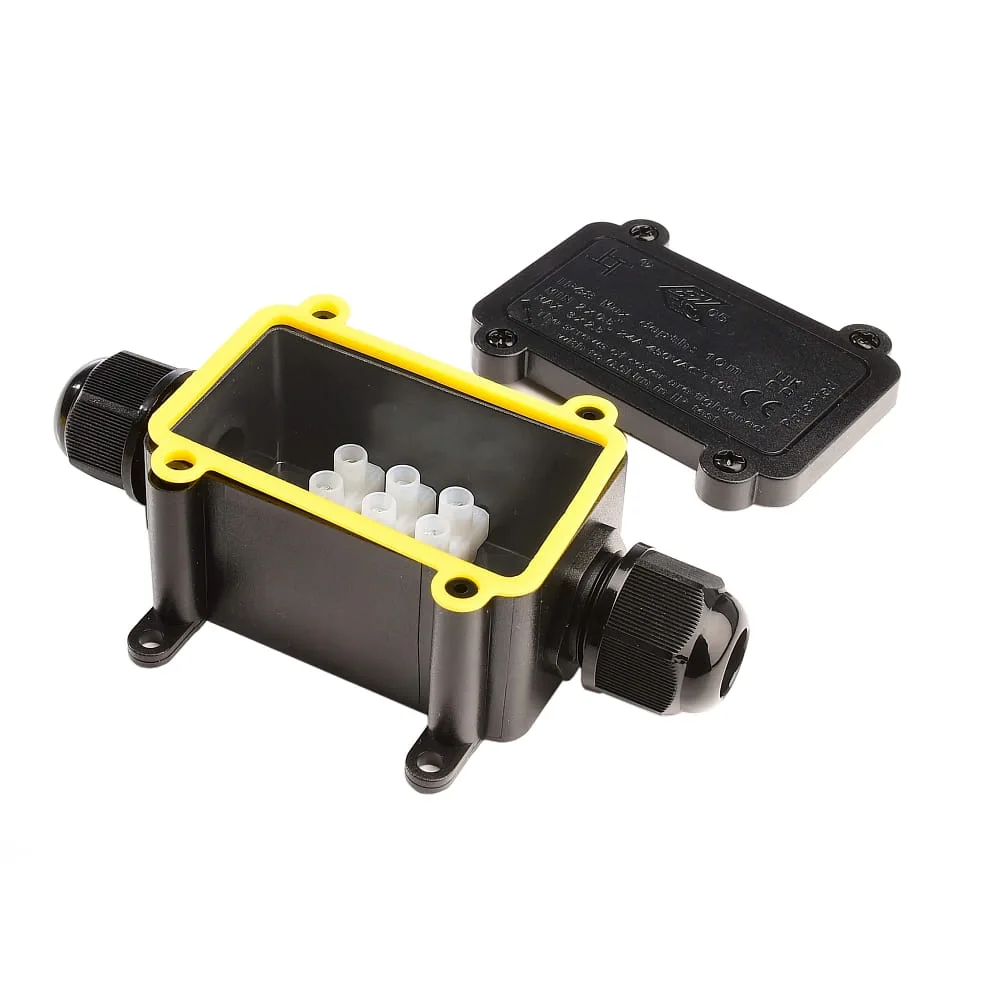

cable connector M20 - 5-12MM / 0.5-2.5MM², IP68 2-fold, square, waterproof, yellow, black

Reliable 2-Way Cable Connector for Versatile Applications

The outdoor 2-way cable connector M20 from Deko-Light is ideal for connecting cables with a diameter of 5 to 12 mm and a conductor cross-section of 0.5 to 2.5 mm². It enables secure wiring of low-voltage and high-voltage components with an operating voltage from 12 to 450 volts and a rated current of 24 amperes. This makes the connector suitable for many electrical applications where a reliable connection is required.

Robust and Waterproof Design with IP68 Protection

The housing of the cable connector is made of durable polyamide combined with flexible rubber, ensuring high stability and longevity. The IP68 protection rating guarantees that the connector is dust-tight and remains waterproof even at water pressure up to 2 meters depth. This way, your cable connections are safely protected from moisture and dirt.

Easy Installation Thanks to Included Accessories

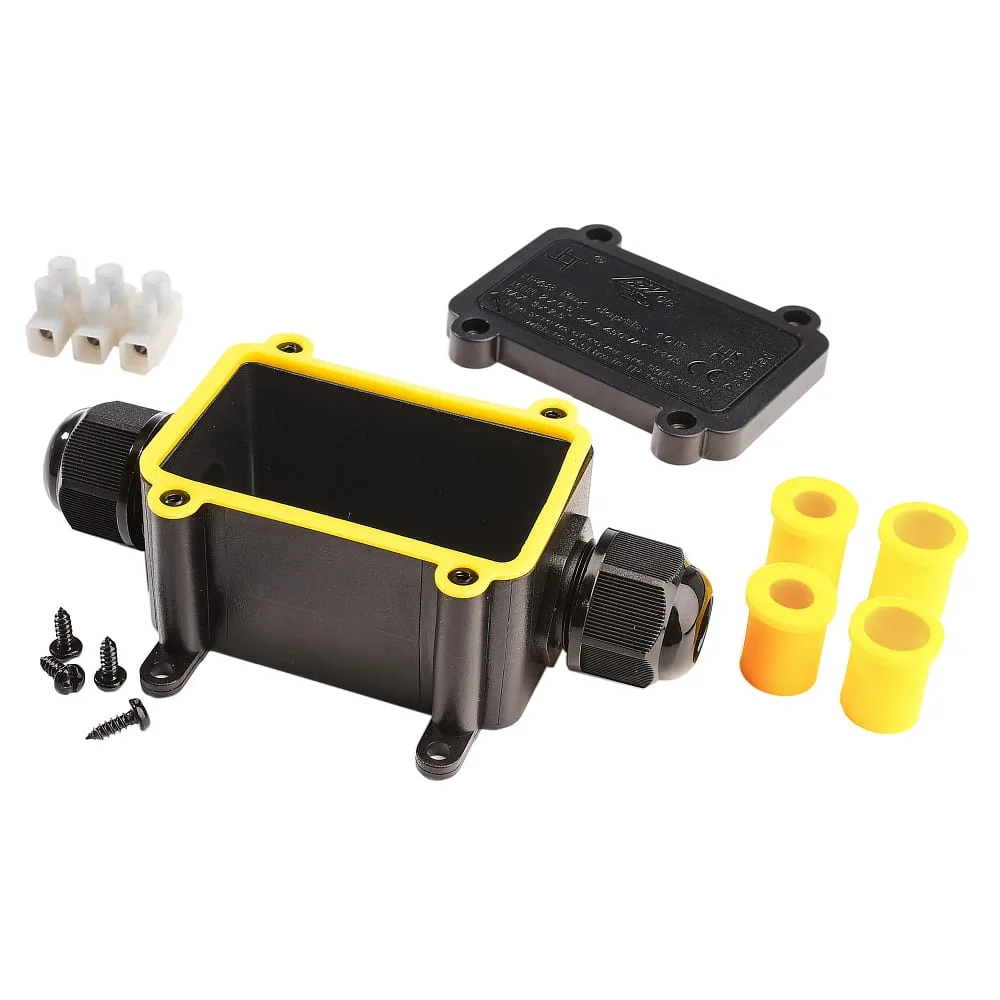

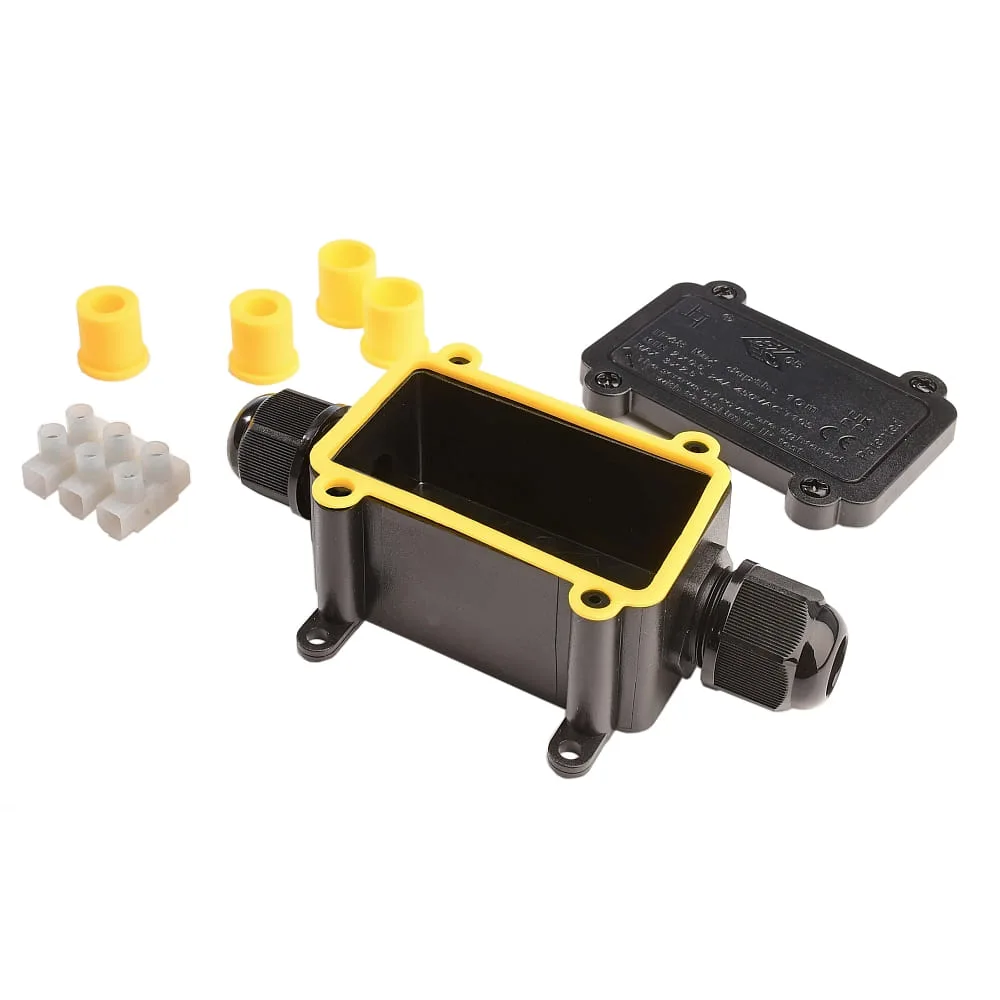

The delivery includes screws as well as various grommets that simplify adaptation to different cable diameters. The supplied rubber reducers enable a precise seal for cables with diameters of 5-9 mm and 9-12 mm. This ensures flexible and secure installation without the need for additional accessories.

High Temperature Resistance and Versatile Applications

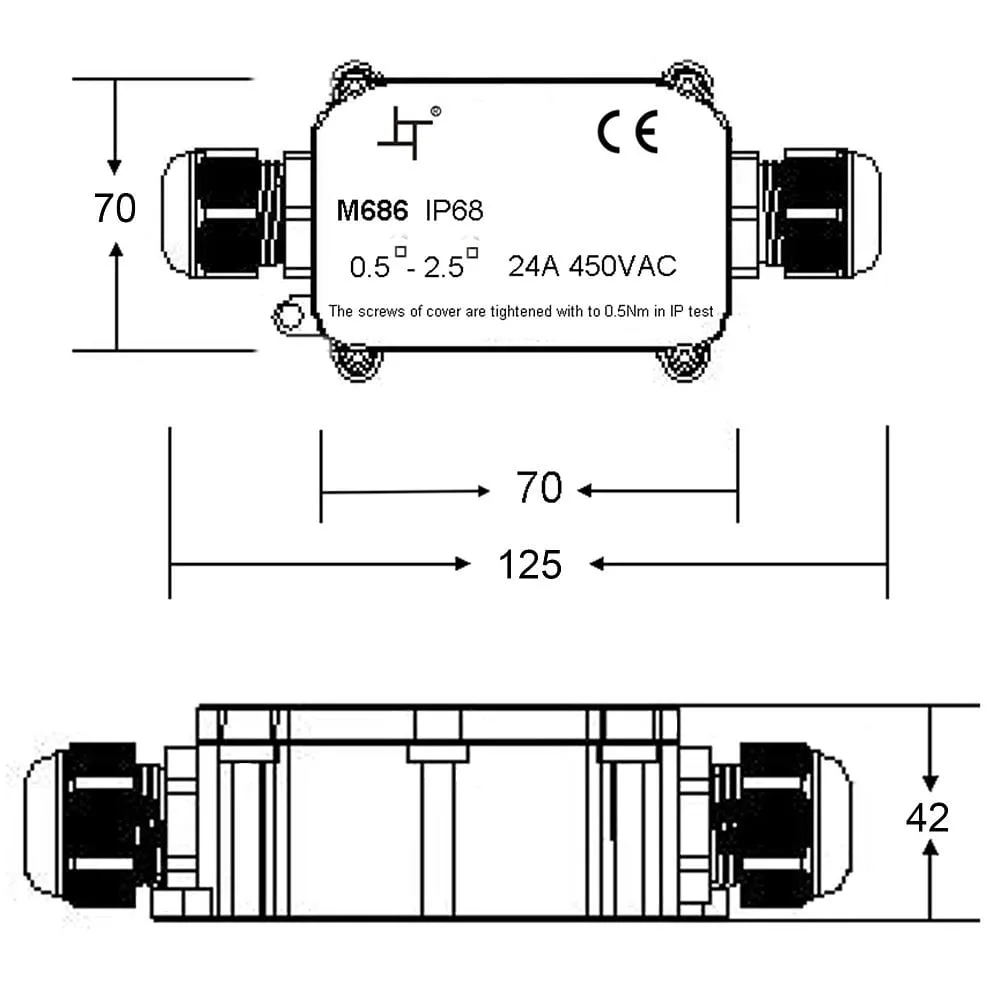

The cable connector is designed for use within a temperature range of -20 to +90 degrees Celsius. This high temperature resistance ensures reliable function even under demanding conditions. Thanks to its rectangular shape and compact dimensions of 12.5 x 7 x 4.2 cm, the connector can be easily integrated and installed space-saving.

Professional Quality from Deko-Light

Deko-Light stands for high-quality and durable products in the field of electrical connection technology. This 2-way cable connector is characterized by its robust workmanship and versatile usability. Additionally, further professional outdoor cable connectors and cable distributors are available to optimally complement and expand your electrical system.
