outdoor spot PL-BEAM PRO M DALI controllable, tiltable IP66, anthracite dimmable

Powerful LED Outdoor Floodlight with Efficient Light Output

The LED outdoor floodlight PL-BEAM PRO M from SLV impresses with its high power of 26 watts and a luminous flux of 3300 lumens. With a luminous efficacy of 126.92 lumens per watt, this floodlight provides efficient and bright illumination in warm white light with a color temperature of 3000 kelvin. The beam angle of 64 degrees ensures wide and even lighting. This makes the model ideal for a variety of lighting requirements.

Robust Construction and High-Quality Materials

The housing of the floodlight is made of durable aluminum and high-quality glass that protects the light source. With an IP66 rating, the device is dust-tight and protected against powerful water jets, ensuring a long service life of up to 70,000 hours. Additionally, the floodlight has an IK08 impact protection rating, making it resistant to vandalism, accidents, or hail damage. Weighing 1.95 kg and featuring an anthracite finish, the design emphasizes both robustness and elegance.

Modern DALI Dimming Function for Flexible Light Control

The PL-BEAM PRO M is dimmable using the DALI-2 protocol, allowing precise and stepless control of light intensity. Ideal for modern building automation systems, this floodlight adapts flexibly to different lighting needs. Included components such as the driver, mounting bracket, and through-wiring simplify installation and integration into existing systems. The connection cable and additional accessories are available separately.

Technical Details for Reliable Operation

The floodlight operates at a supply voltage of 220 to 240 volts with a mains frequency of 50/60 Hz. The maximum ambient temperature ranges from -20 to 50 degrees Celsius, ensuring stable operation under various conditions. The inrush current is high at 24 amperes, but its duration is only 98 microseconds. Depending on the circuit protection, up to 62 luminaires can be connected to an LS C16A, allowing flexible use in larger lighting installations.

Practical Accessories and Easy Installation

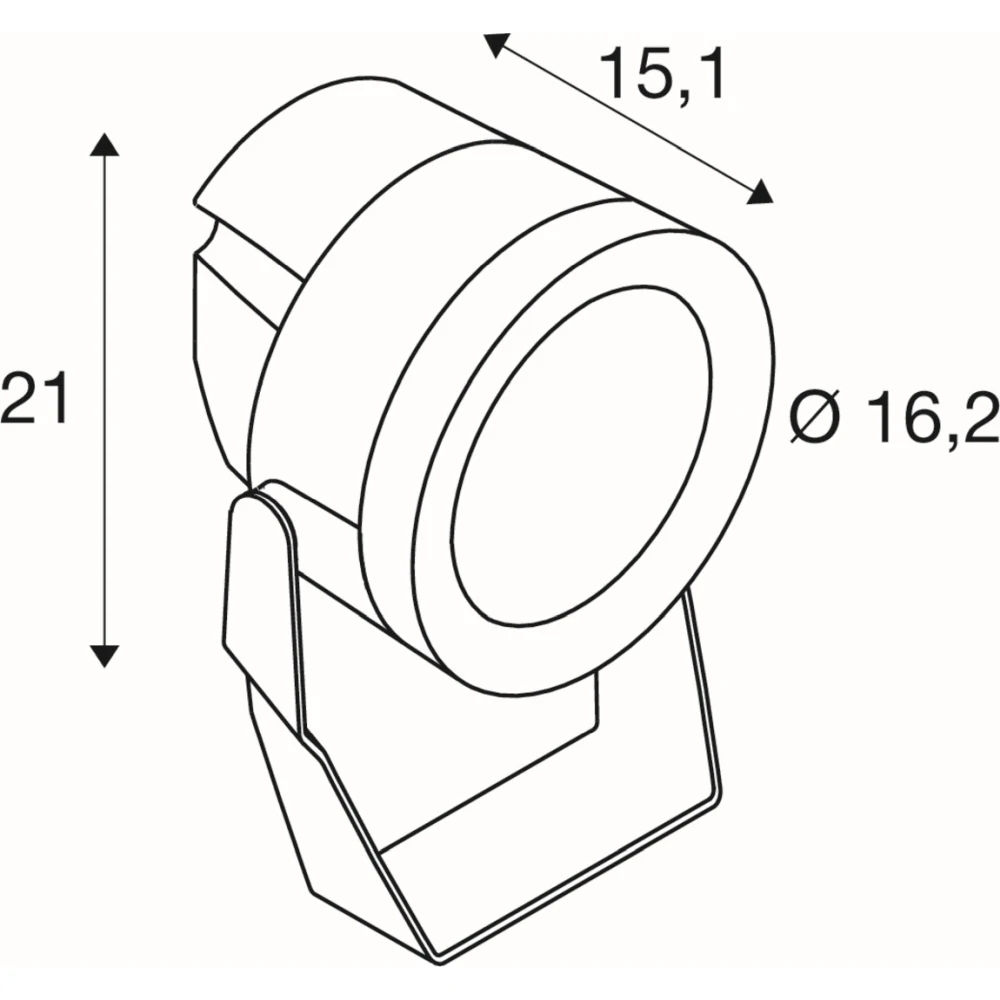

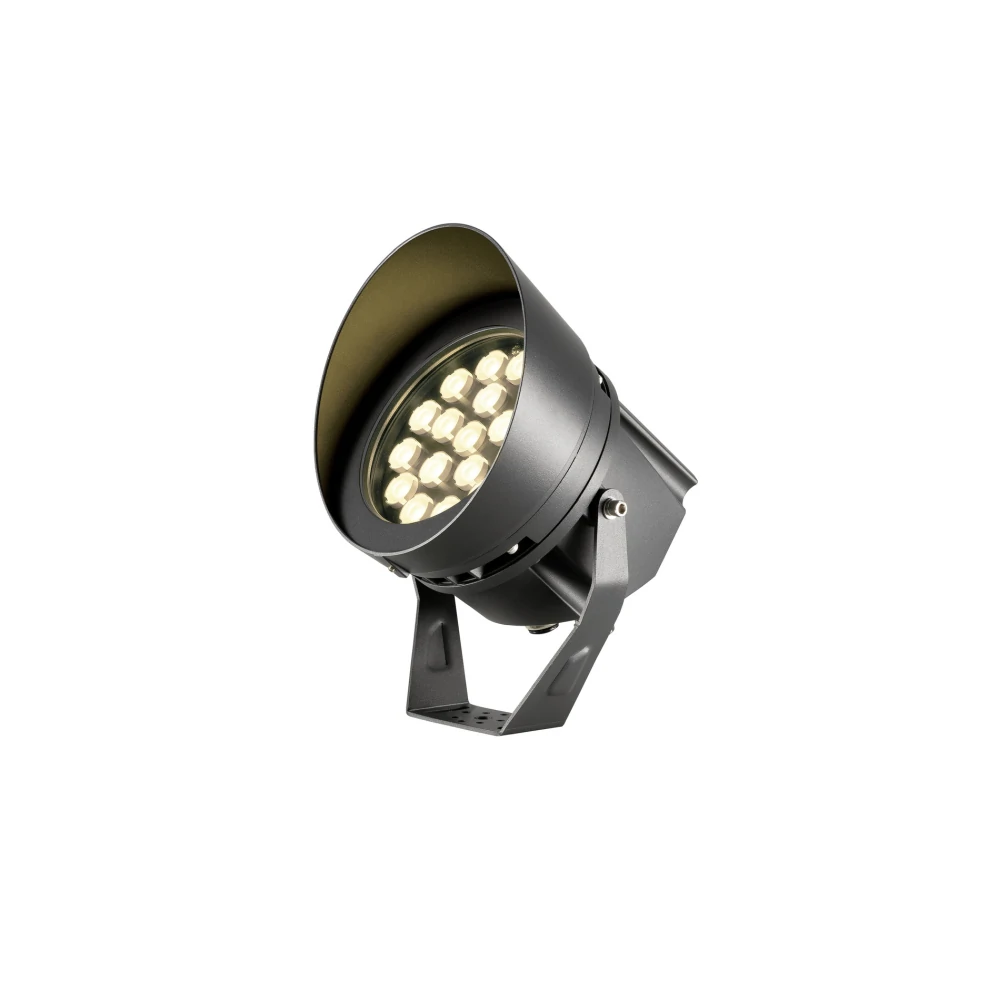

The scope of delivery includes important mounting aids such as the mounting bracket, driver, and through-wiring, which guarantee easy and secure installation. Optional accessories like glare shields, honeycomb filters, wall mounts, or clamps are available separately to customize the floodlight to specific requirements. The compact size with a head diameter of 16.2 cm makes the floodlight versatile without taking up much space.
