1-Phase High Voltage track, integrated version, 2m, white

High-Quality 1-Phase High-Voltage Recessed Track by SLV

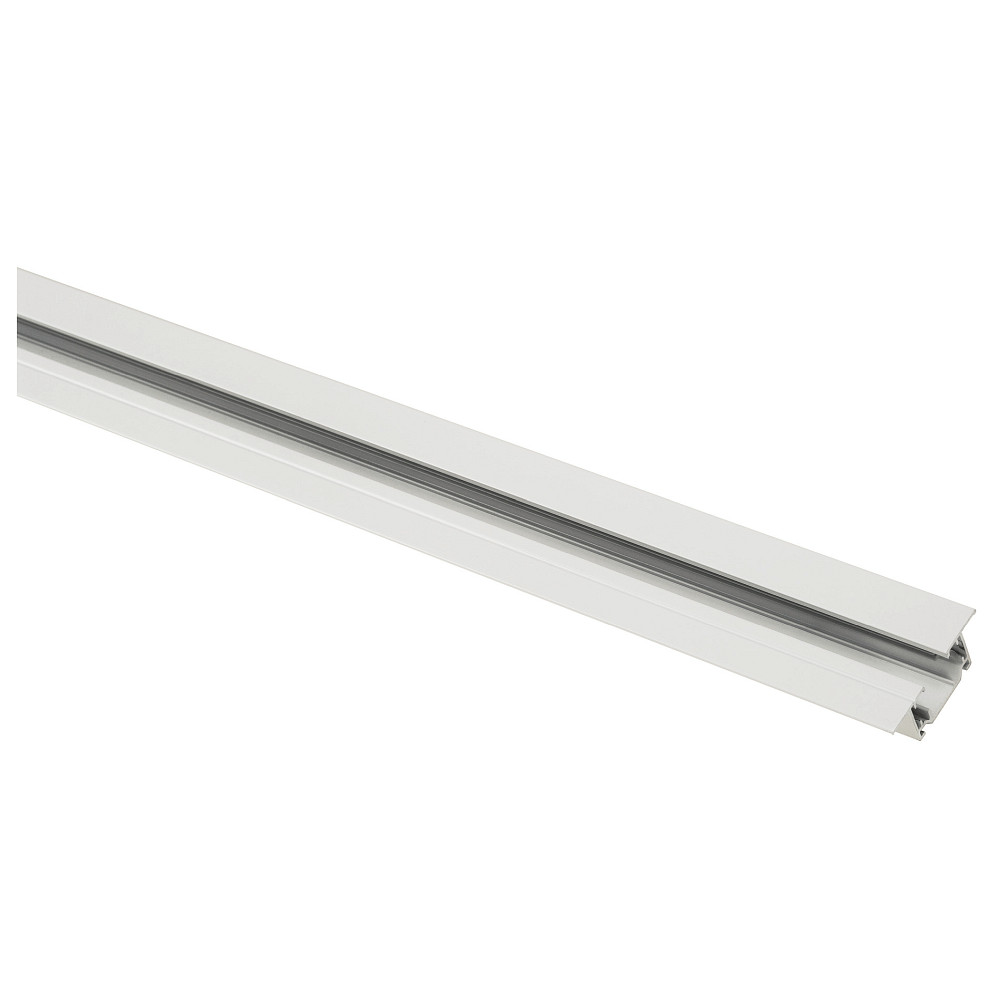

The 1-phase high-voltage track from SLV is a professional recessed solution for ceiling installation. Made from sturdy aluminum, it impresses with its durable and stable construction. With a length of 200 cm and an elegant white color, the track blends discreetly into various room concepts. It is specially designed for indoor use and offers a maximum current load of 16 amperes at an operating voltage of 220-240 volts.

Easy Installation and Flexible Adjustment

The track is designed for mounting in solid ceilings and features a mounting depth of only 1.6 cm. For installation in hollow ceilings, special mounting brackets are required, which add an additional installation depth of 4 cm. The rectangular mounting opening measures 200 cm in length and 4 cm in width. Thanks to the possibility of shortening the track to the desired length with a standard metal hacksaw, the installation can be flexibly adapted to different room sizes.

Compatibility and Technical Details

The 1-phase track system is designed to operate at a mains frequency of 50/60 Hz and works with a conductor cross-section of 4 mm². The track is compatible with standard power feeds, end caps, connectors, and luminaires, which are available separately. It enables both analog switching and dimming of connected lights, supporting individual lighting design. Protection class 1 and protection rating IP20 ensure safe operation in the intended application area.

Design and Dimensions at a Glance

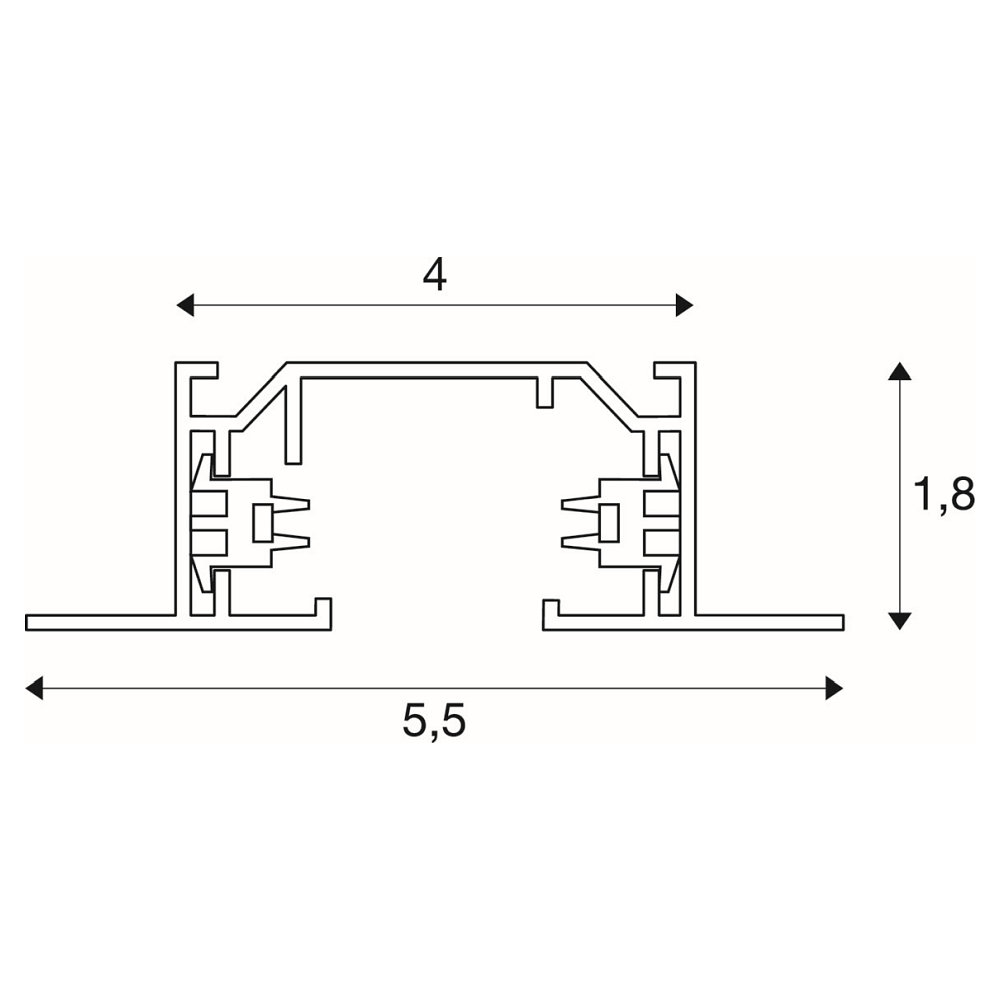

The visible track width is 5.5 cm with a height of only 0.2 cm, ensuring an unobtrusive appearance. The overall dimensions are 200 cm in length, 5.5 cm in width, and 1.8 cm in height. The maximum ceiling material thickness must not exceed 1.4 cm to guarantee optimal installation. Weighing 1.207 kg, the track is easy to handle and simple to install.

Versatility and Accessories

The high-voltage track from SLV is ideal for custom lighting solutions, as it is designed as a track system for fitting with various light sources. In addition to the recessed version, surface-mounted variants in different colors and lengths are also available, offering further design options. Accessories such as power feeds, end caps, connectors, and luminaires are not included in the delivery but can be purchased separately to complete the system perfectly.
