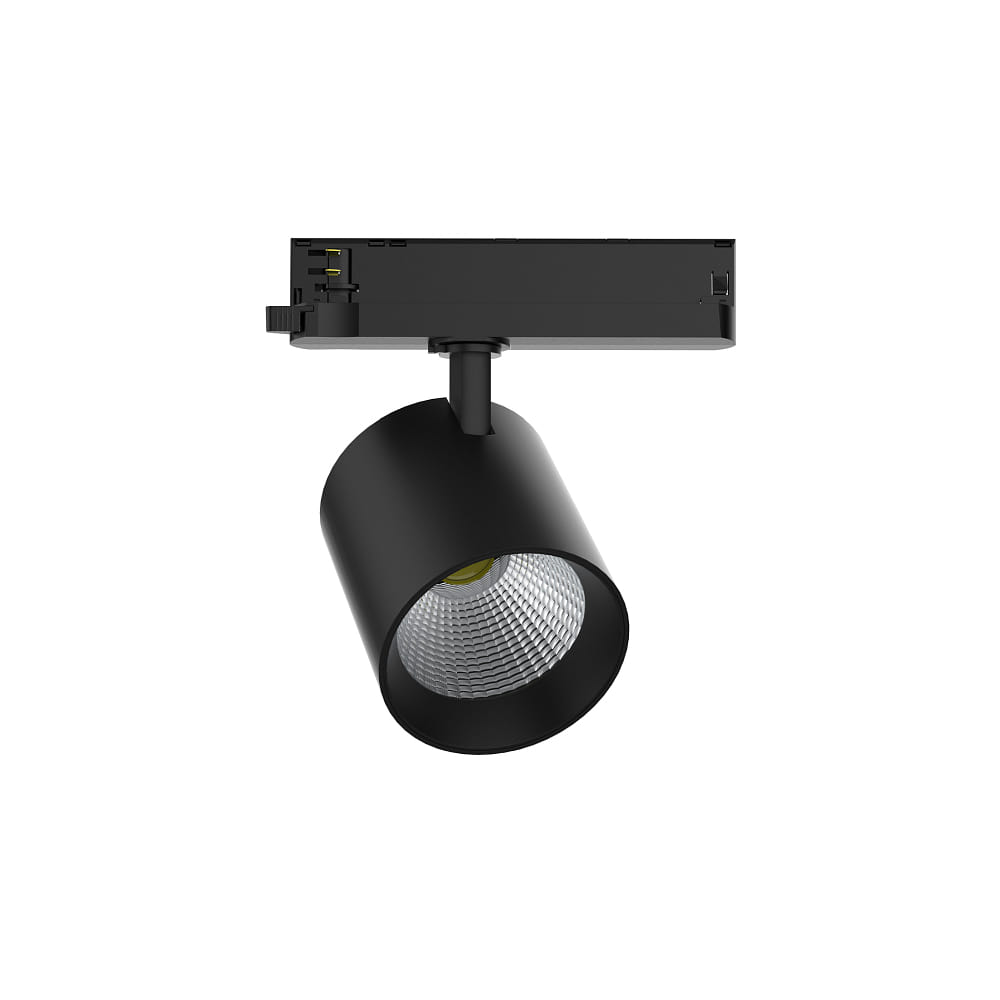

3-phase spot TRACKSPOT C swivelling, suitable for VDU workstation IP20, black dimmable

Efficient Lighting with the LED 3-Phase Spotlight TRACKSPOT C

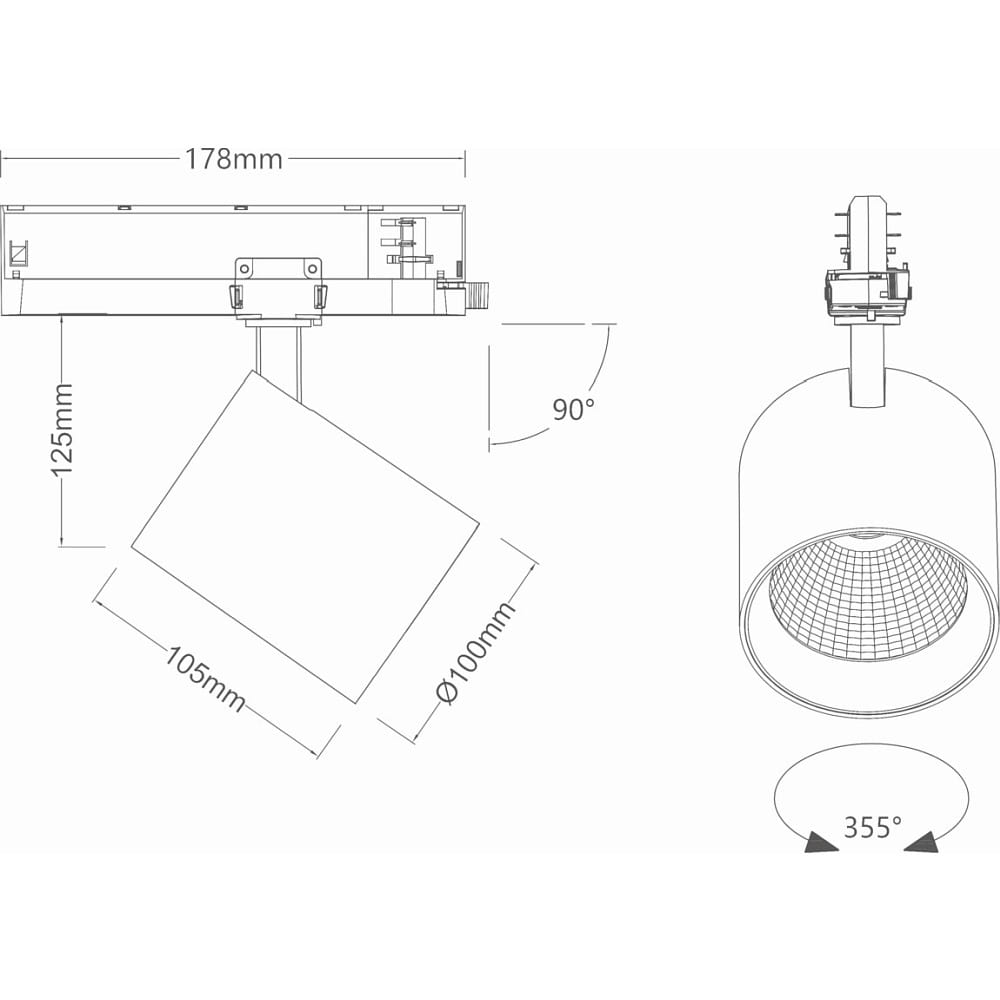

The LED 3-Phase Spotlight TRACKSPOT C from SLV impresses with its compact size of 17.8 cm and a powerful luminous efficacy of 133.33 lumens per watt. With a power consumption of only 12 watts, the spotlight provides bright and energy-efficient lighting. The light color is neutral white at 4000 Kelvin, which ensures pleasant, naturally appearing light. Thanks to the beam angle of 36°, the spotlight is ideal for targeted illumination of specific areas. The housing is made of robust aluminum and is finished in elegant black.

Flexible Control and Dimmability

The TRACKSPOT C spotlight is dimmable via DALI and DALI-2, allowing the light intensity to be adjusted continuously. This flexibility enables individual lighting design that can be optimally adapted to various requirements. The LED driver is current-controlled and replaceable, which simplifies maintenance and extends the product’s lifespan. The ability to swivel the luminaire offers additional comfort when directing the light beam.

Convenient Installation and Connection

The spotlight is connected via a track adapter, enabling quick and easy installation. It is designed for use on 3-phase track systems and supports an operating voltage of 220 to 240 volts. Protection class 2 ensures additional safety during installation. Furthermore, the TRACKSPOT C is suitable for screen workstations, making it a good choice for work areas where glare-free and comfortable lighting is important.

Robust Construction and Protection

The spotlight is rated IP20, protecting it against finger contact and thus enhancing safety in handling. The ambient temperature range in which the spotlight operates reliably is between -20 and 35 degrees Celsius. The aluminum construction ensures durability and good heat dissipation, supporting the lifespan of the LED components. With only one light source, the spotlight is particularly maintenance-friendly and efficient.

Optimal Performance Data and Applications

The luminous flux of the TRACKSPOT C ranges between 1600 and 4970 lumens depending on the setting, enabling strong and flexible illumination. The medium-beam light cone of 20 to 40 degrees ensures targeted light distribution without scattering. The maximum number of luminaires that can be connected to a circuit breaker is 27 with B16 and 44 with C16, facilitating easy integration into larger lighting systems. The included driver completes the package and makes the TRACKSPOT C a well-thought-out and high-quality lighting solution from SLV.
