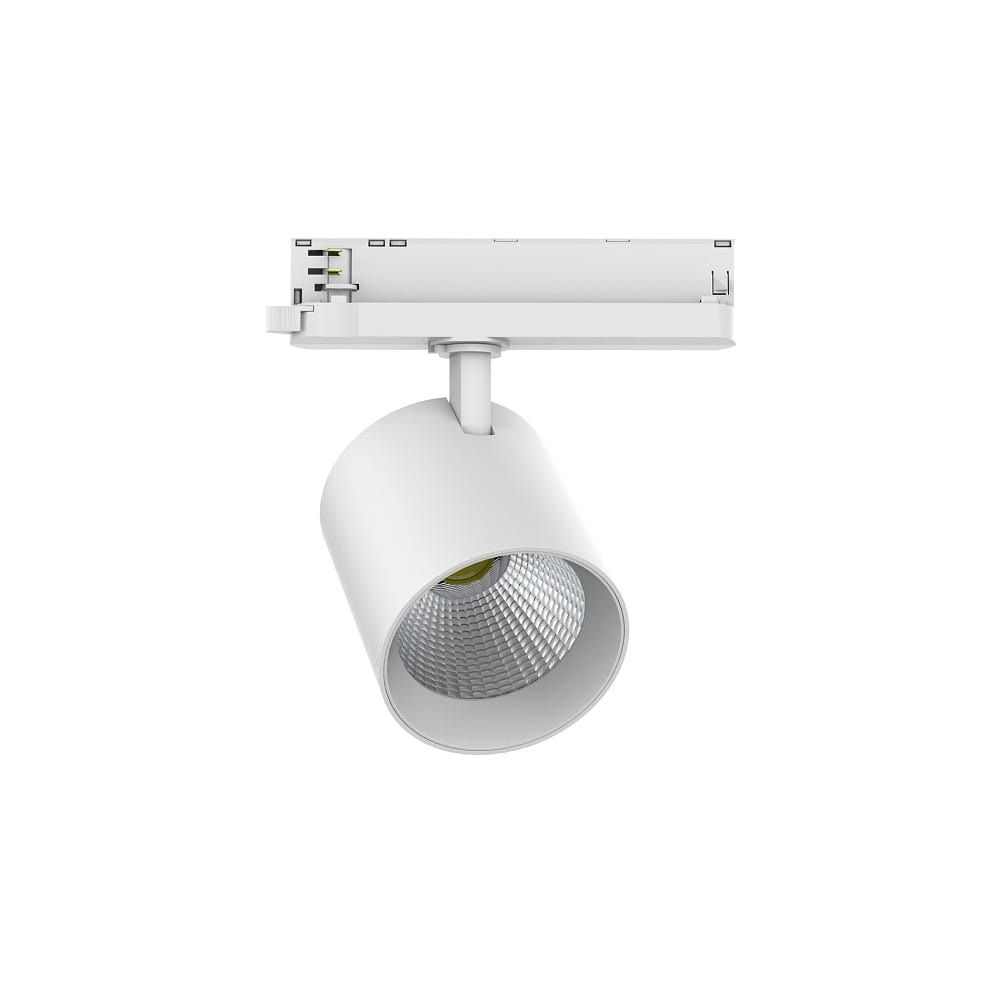

3-phase spot TRACKSPOT C swivelling, suitable for VDU workstation IP20, white dimmable

SLV



Are you a retailer or business customer (commercial/freelancer)? Secure special B2B prices now.

High-Quality 3-Phase LED Spotlight from SLV

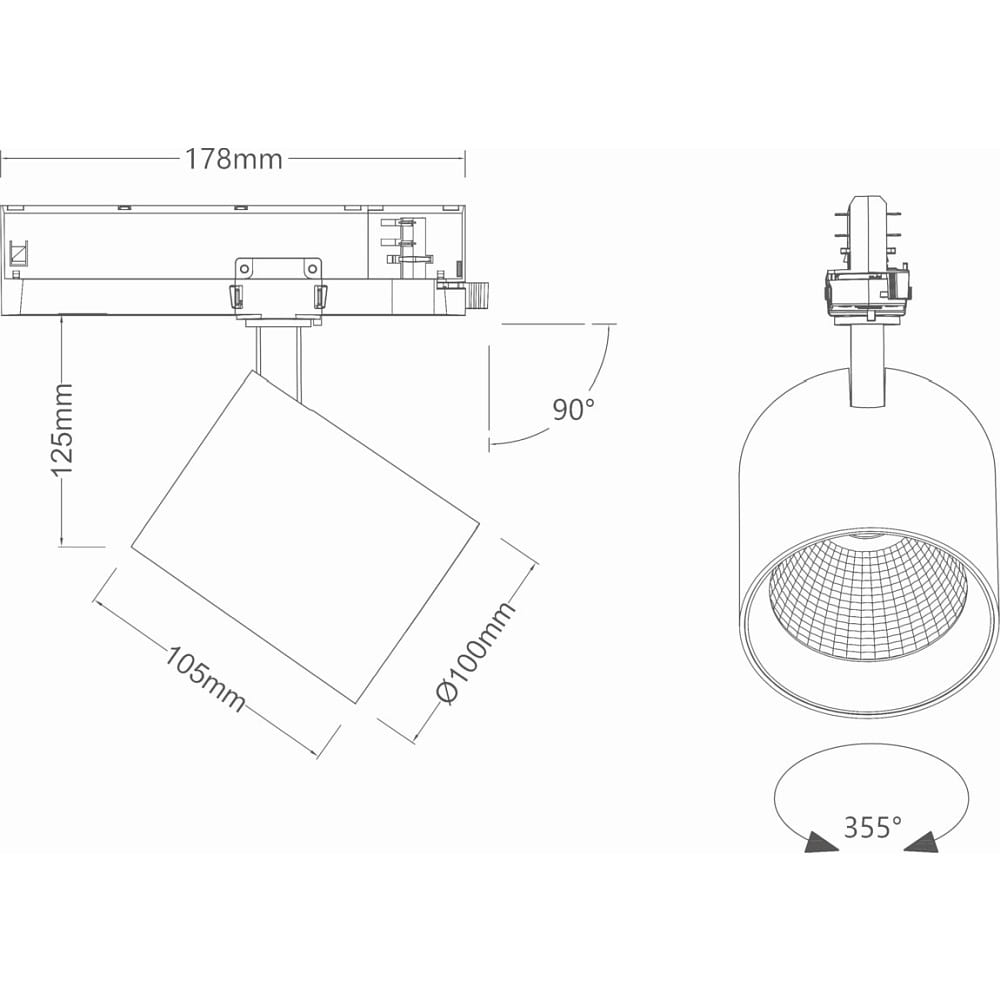

The TRACKSPOT C LED 3-phase spotlight from SLV impresses with its compact design, measuring 17.8 cm in diameter and 14 cm in height. Made from robust aluminum in elegant white, the spotlight blends harmoniously into any environment. With a protection class of 2 and an IP20 rating, the device is reliably protected against dust. The high-quality workmanship guarantees a long service life and optimal stability.

Efficient Lighting with Neutral White Light

This spotlight produces a neutral white light with a color temperature of 4000 Kelvin, providing a pleasant and natural illumination. The luminous flux of up to 5594 lumens and a luminous efficacy of 149.75 lumens per watt enable very efficient energy use. The light distribution is carried out with a beam angle of 24°, which is medium-beam between 20 and 40°, thus ensuring targeted lighting.

Flexibility through DALI Dimming and Swivel Function

Particularly practical is the stepless adjustable luminous flux control, which is dimmable via DALI and DALI-2. This allows the brightness to be optimally adapted to different needs. Additionally, the spotlight is swivelable, enabling flexible light direction. The replaceable LED driver ensures easy maintenance and guarantees a long operating life of the lamp.

Easy Installation and Versatile Connection Options

The TRACKSPOT C is equipped with a track adapter that allows uncomplicated mounting on 3-phase tracks. The operating voltage of 220 to 240 volts makes integration into existing systems simple. Thanks to a maximum number of 44 luminaires on a C16 circuit breaker and 27 luminaires on a B16, larger installations can also be implemented without problems.

Optimal Applications and Technical Details

The spotlight is designed for an ambient temperature range of -20 to 35 °C and, due to its high light quality, is also suitable for screen workplaces. The medium-beam light with a beam angle of 24° offers pleasant and glare-free illumination. With only 12 watts of power consumption, the TRACKSPOT C is an energy-saving yet powerful lighting element that performs well in many areas.

Colour:
white
Reflector color:
silver
Dimension:
B∕ H: 17,8∕ 14 cm
Material:
aluminium
Product type:
3-phase spot
Accessories:
control gear - included in delivery
Operating voltage:
220|240 V~
Dimmable:
yes
Dimmability:
DALI,DALI-2
Power consumption:
12 W
Number of bulbs:
1
Light colour:
neutral white
Beam direction:
symmetriccal
Light flux:
1797|5594 lm
Light yield:
149,75 lm/W
Colour temperature:
4000 K
UGR:
< 25
IK-Rating:
IK02 up to 0.20 Joule
Protection class:
2
IP-protection class:
IP20
Additional information:
swivelling
LED driver
Light flux LED module: 370lm
ambient temperature:
-20|35 °C
Energy efficiency category:
B
Article number:
1011157
Purchasing quantity:
1 piece
Brand:
SLV
Manufacturer:
SLV
Manufacturer information
SLV GmbH, Daimlerstraße 21-23, 52531, Übach-Palenberg, Germany, info@slv.de
