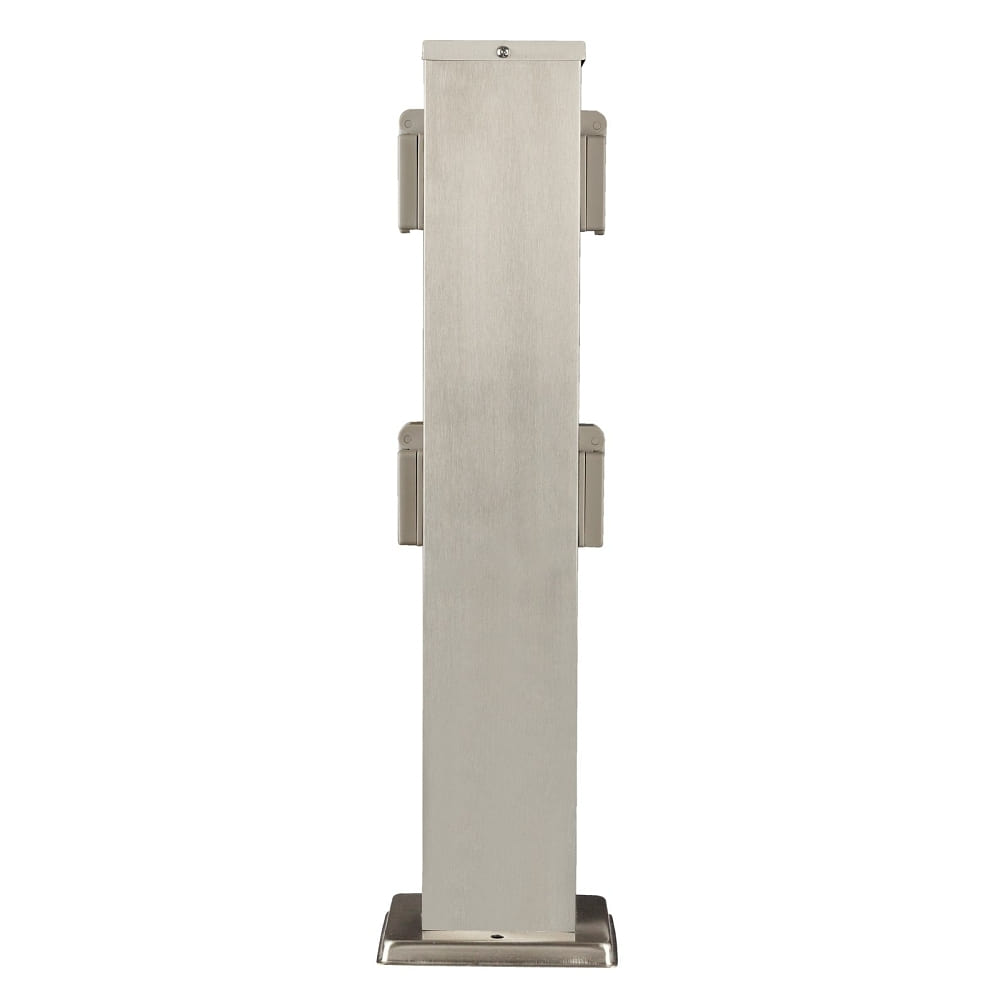

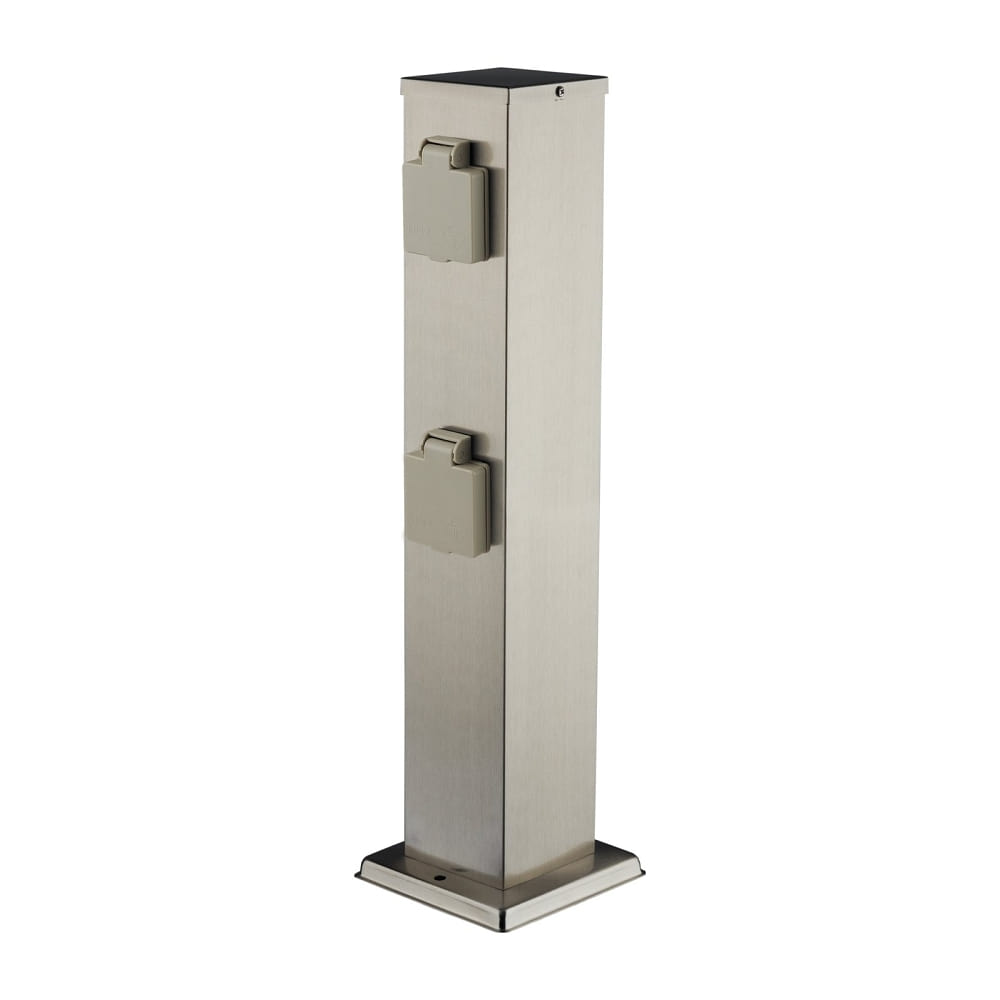

4-way power distributor BANGKOK

Robust Energy Distributor Made of Stainless Steel

The BANGKOK energy distributor from Heitronic impresses with its robust housing made of brushed V2A stainless steel (stainless steel 304) combined with high-quality plastic elements. This choice of materials guarantees a long service life and high resistance to environmental influences. The angular shape with dimensions of 12.7 x 47 x 12.7 cm makes the distributor compact and space-saving, ideal for fixed installation.

Practical Equipment with Four Schuko Sockets

The energy distributor features four Schuko sockets arranged as vertical pairs on the front and back sides. Each socket is equipped with an enhanced touch protection, providing optimal child safety. Additionally, a spring-loaded flap cover protects each outlet from dust and splashing water, making usage safe and convenient.

Easy Installation and Secure Connection

Installation is straightforward using four mounting holes on the base plate, which are included in the delivery. The distributor is connected via an internal 3-pole screw terminal, ensuring a secure and firm connection to the power supply. The connection cable is not included but can be purchased separately.

Technical Data for Powerful Operation

The energy distributor operates with a supply voltage of 230 V AC and a mains frequency of 50/60 Hz. The maximum current load is 16 A, corresponding to a power of up to 3680 watts. Protection class 1 and IP44 protection rating ensure the distributor is well protected against splashing water and dirt, further enhancing safety during use.

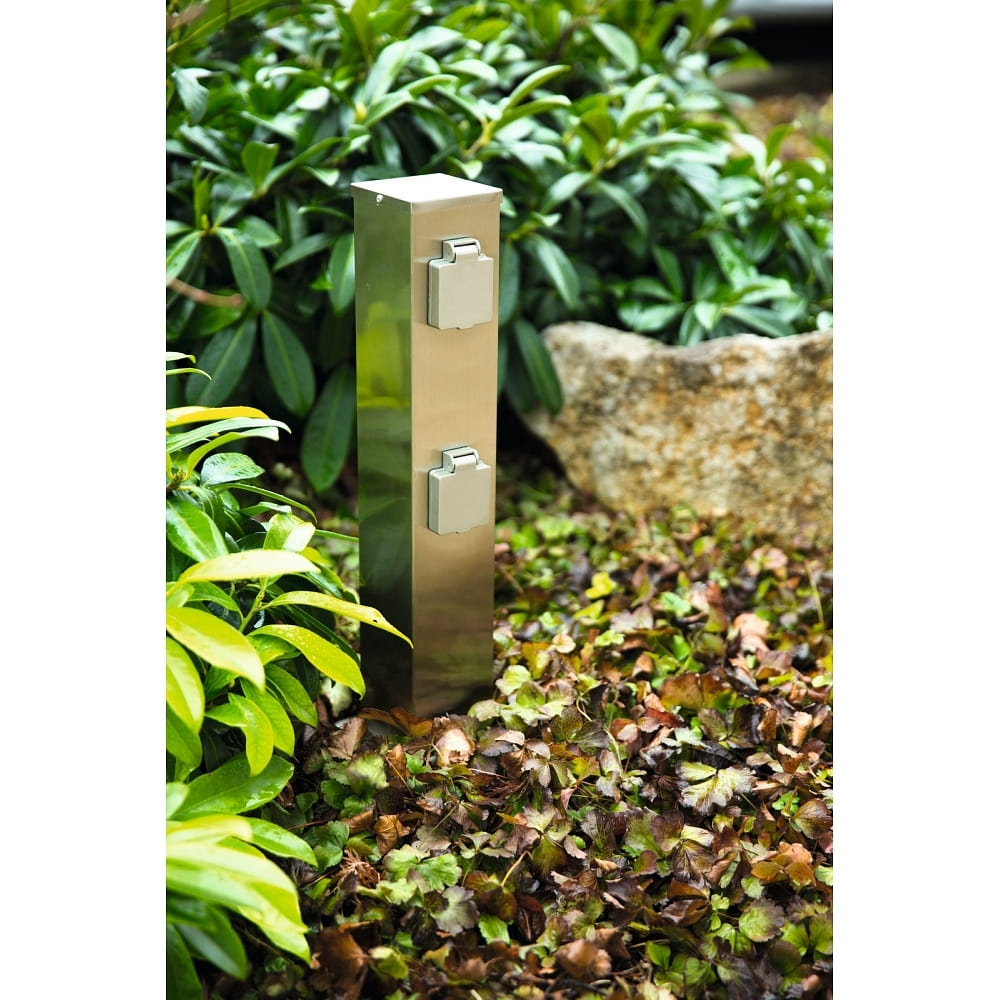

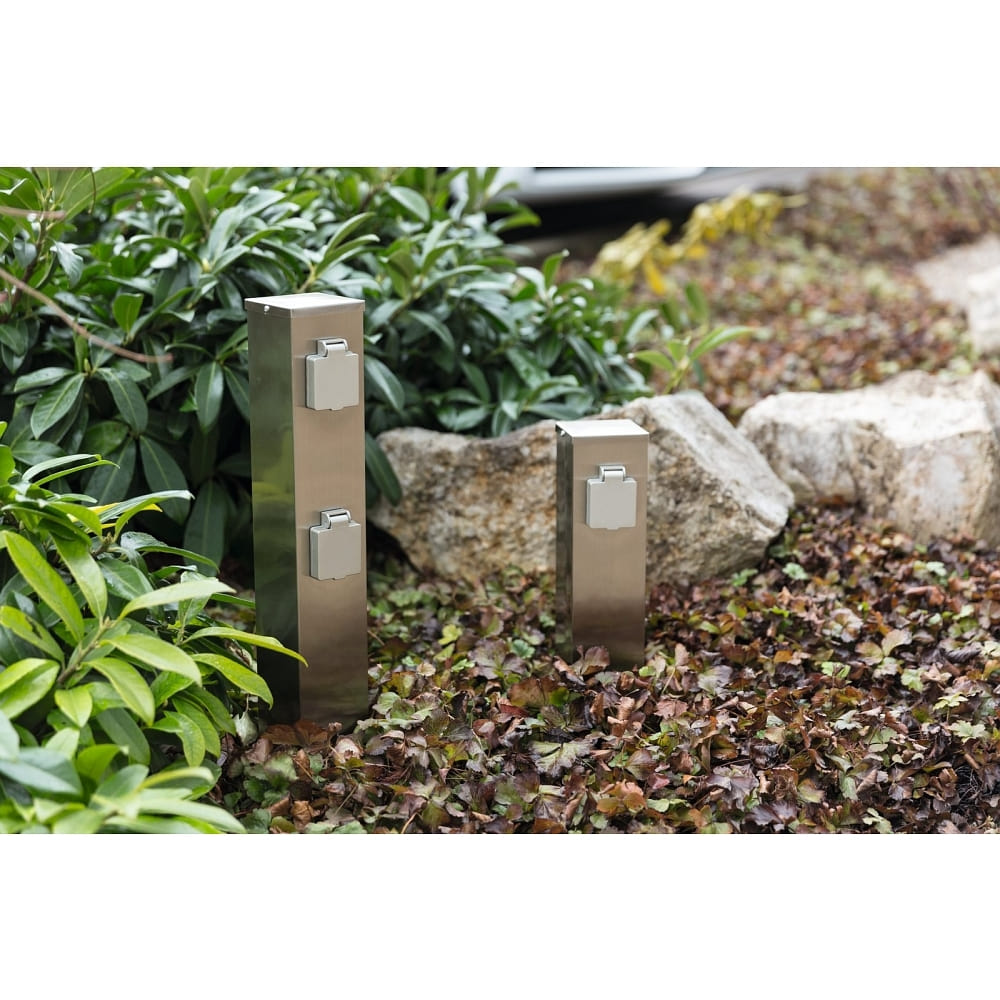

Versatile Applications and Accessories

The product is ideal for use in garages, workshops, or other areas that require a reliable power supply. The delivery includes mounting accessories, child protection, and spring-loaded flap covers, which facilitate handling. Alternatively, the energy distributor is also available in a version with only two sockets or with an anthracite powder-coated housing to meet different requirements.
