Compact linear luminaire (long field) SlimLite CS HE, 89.5cm, 21W, with splinterguard cover (plexiglas)

Hera

Print product information sheet▶

question regarding the article

Hera Compact linear luminaire (long field) SlimLite CS HE, 89.5cm, 21W, with splinterguard cover (plexiglas)

Print product information sheet▶

question regarding the article

58,20 EUR

excl. Shipping costs / incl. 21 % VAT

Shipping time: 13-15 days

Product no.: HE-50115040000
EAN: 4051268065290
In stock: 50

Are you a retailer or business customer (commercial/freelancer)? Secure special B2B prices now.

To business registration

Description
Technical details

Technical Data

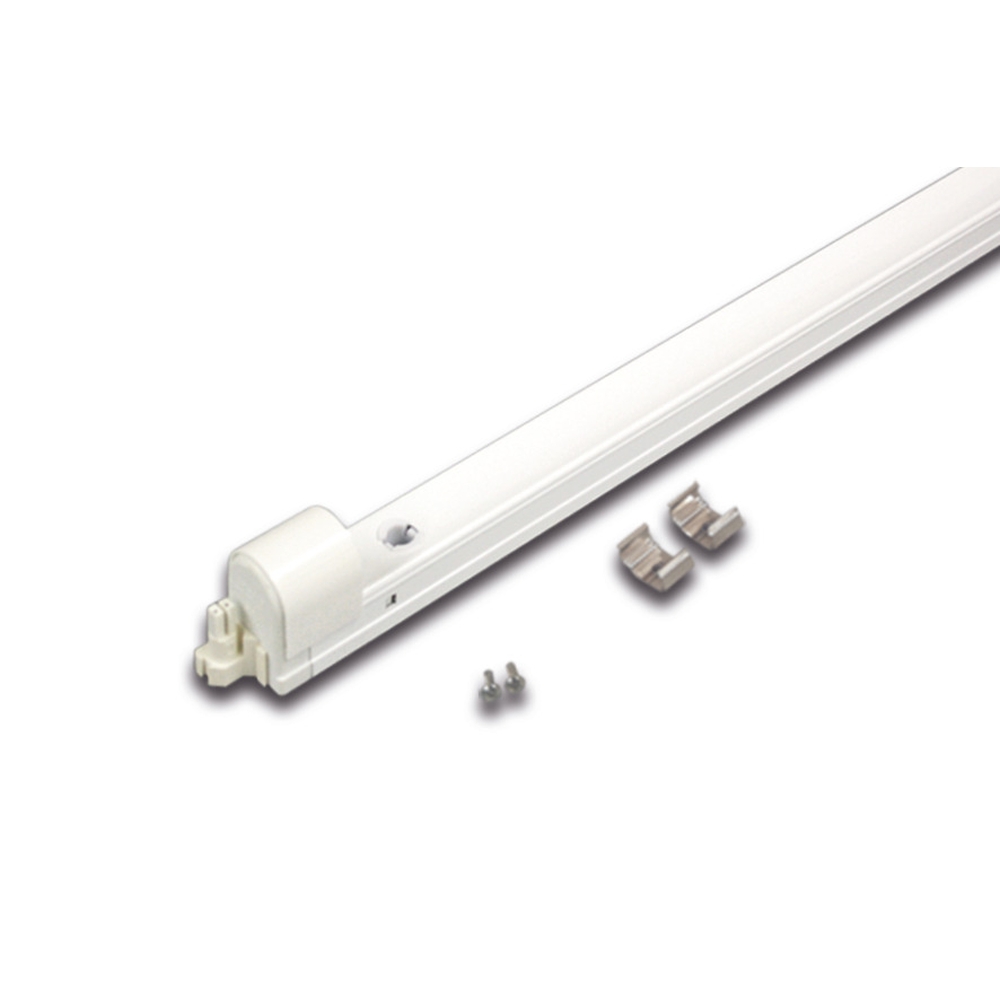

The compact long-field luminaire SlimLite CS HE is a slim luminaire with a length of 89.5 cm and a power of 21W. It operates at a voltage of 230V and is through-wired and screwable. The luminaire has a protection class of 2 and weighs 0.39 kg. The material is made of aluminum and Plexiglas.

Application

This long-field luminaire is ideal for use in furniture or on the wall. Due to its compact size and slim design, it seamlessly integrates into various environments and provides even light distribution.

Durability and Efficiency

With an average lamp lifespan of 60,000 hours and an energy efficiency index (EEI) of the power supply of A1, the SlimLite CS HE impresses with its durability and efficiency. The power factor is 0.96 and the luminaire has an IP protection rating of 20.

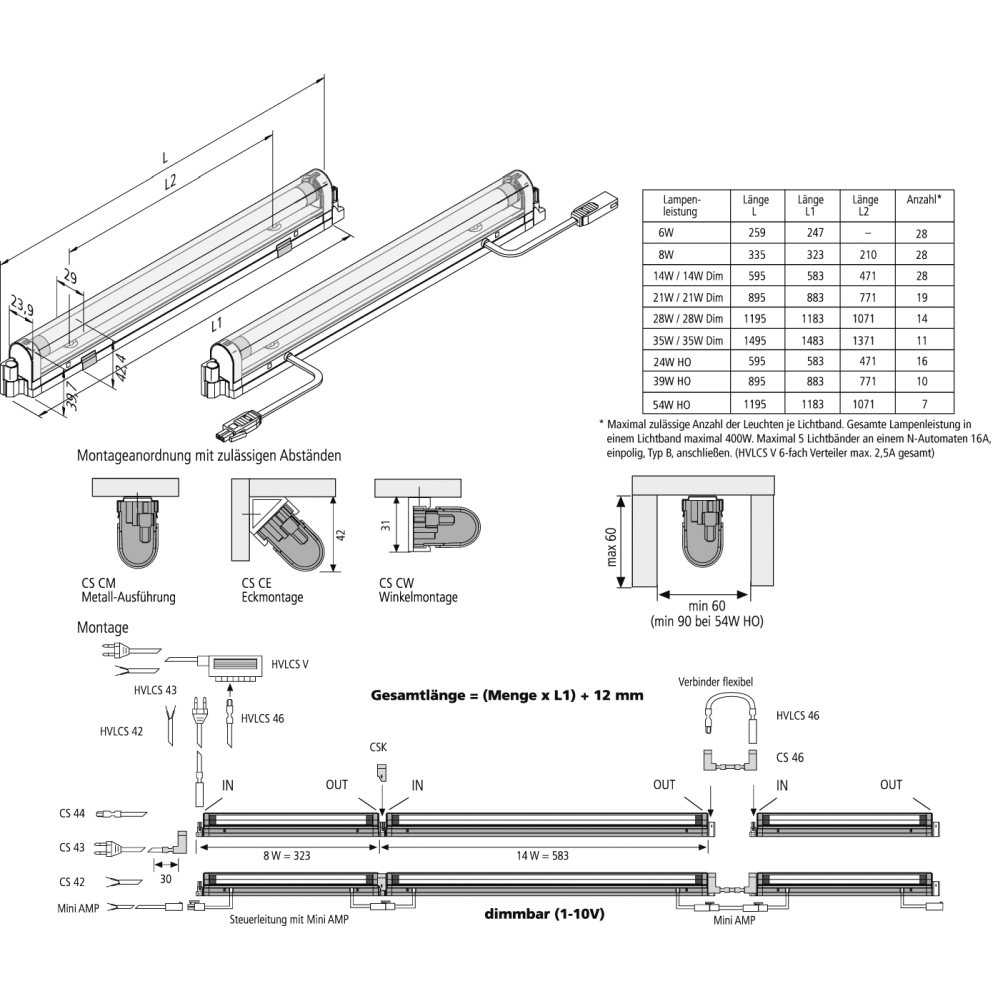

Accessories and Installation

The operating device is included in the delivery, but the cover, connecting cables, mounting accessories, connecting lines, connecting plugs, and distributor are available separately. The luminaire can be screwed through, allowing for easy installation without clips. Through-wiring for the installation of multiple luminaires in a row is also possible.

Additional Information

The compact long-field luminaire SlimLite CS HE by the brand Hera is suitable for indoor use only. It has an AMP plug for the power connection and is supplied without light bulbs. With a maximum power of 400W per light strip and the ability to connect up to 5 light strips to one N-automat, this luminaire offers versatile application possibilities.

Colour:

white

Dimension:

L∕ W∕ H: 89,5∕ 2,9∕ 4,3 cm

Material:

aluminium
plexiglass

Weight:

0,39 kg

Product type:

light bar

Lamptype:

Tube lamp

Bulbs in delivery:

Accessories:

control gear - included in delivery
distributor - not included in delivery
connecting plug - not included in delivery
connection line - not included in delivery
mounting accessories - not included in delivery
connection cable - not included in delivery
cover - not included in delivery

Application area:

only suitable for indoor use

Field of application:

furniture
wall

Socket of the bulb:

Operating voltage:

220-240 V~

Dimmable:

Power frequency:

50-60 Hz

Number of bulbs:

Light emission:
