controller, beige

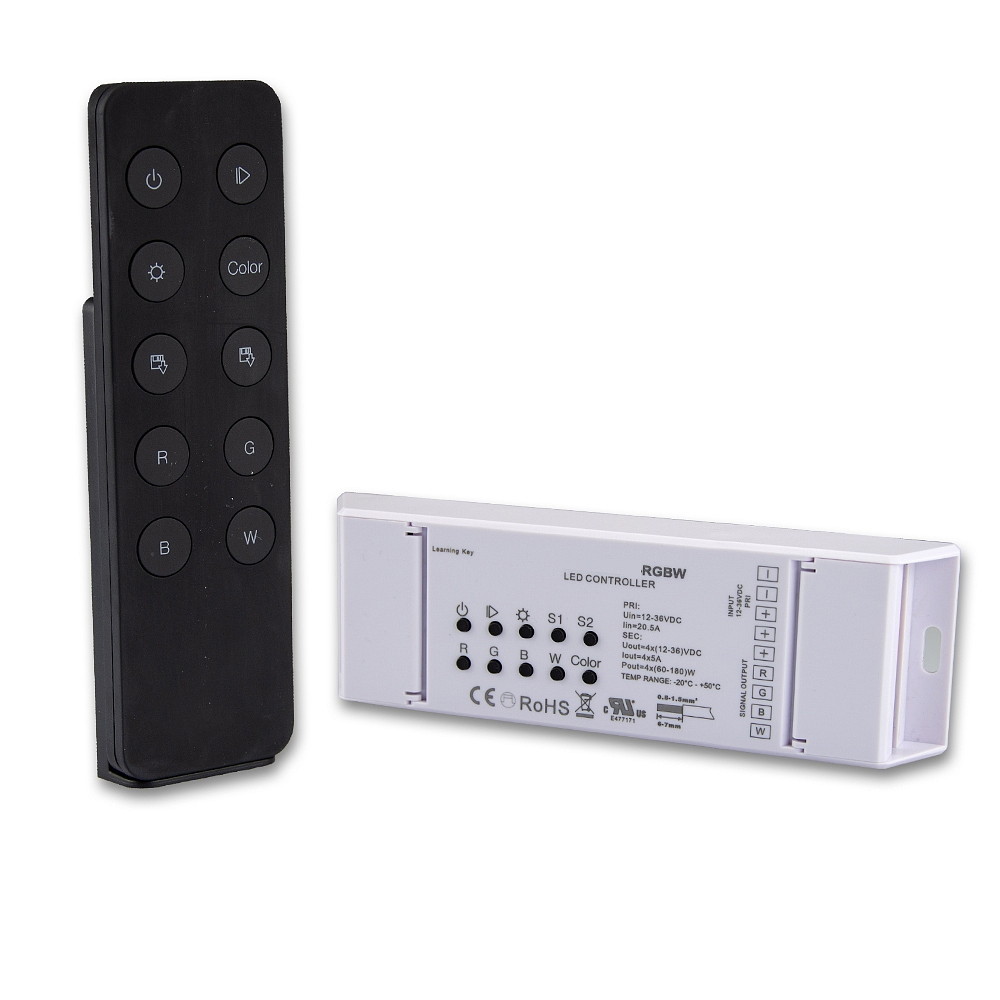

Versatile RGB+W PWM Controller from ISOLED

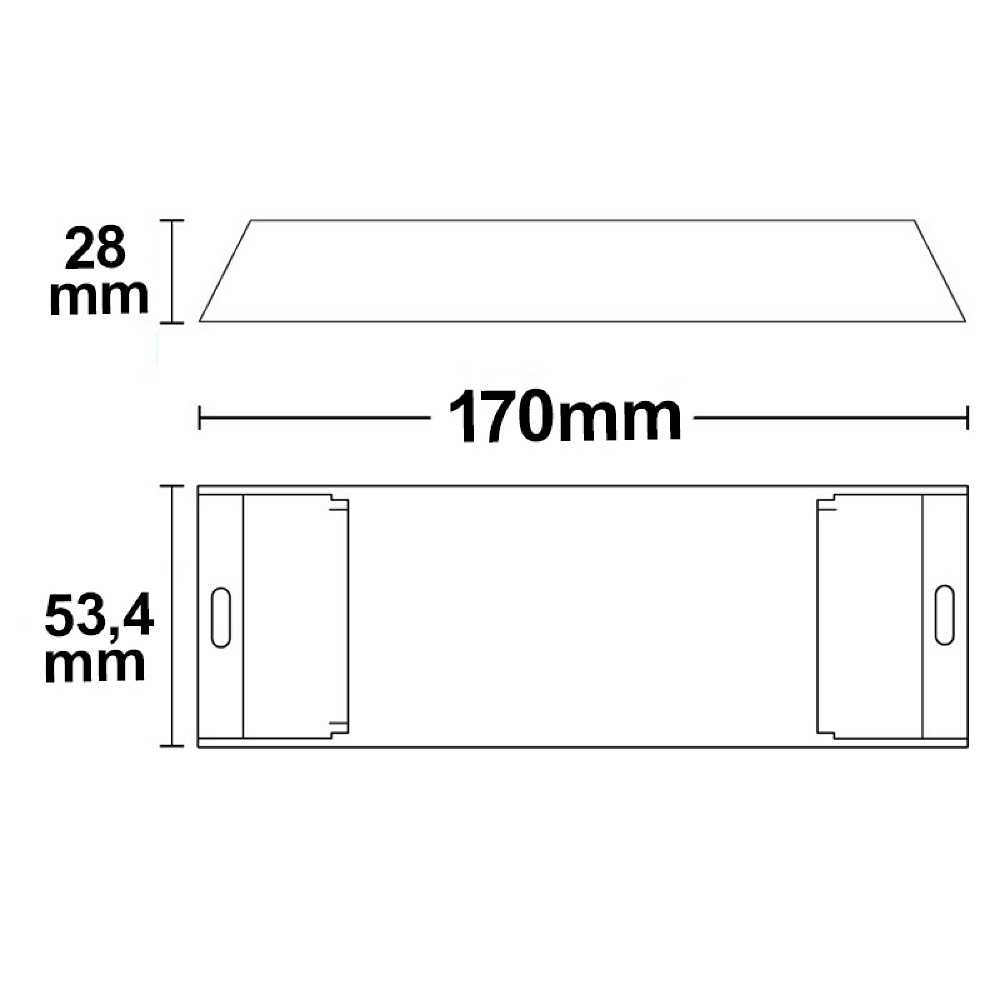

The RGB+W PWM controller from ISOLED is a powerful and flexible LED controller specially designed for controlling RGB and white LED strips. With an operating voltage of 12 to 36 volts, the device is suitable for a wide variety of LED systems. Control is carried out via both infrared and radio remote controls, enabling simple and convenient operation. The beige housing measures a compact 5.34 x 2.8 x 17 cm and can be easily mounted.

Powerful Control with 4 Channels

The controller features four channels, each capable of up to 5 amperes of current, allowing precise and powerful control of the LED strips. The PWM technology (pulse-width modulation) optimally regulates the brightness and color of the LEDs to ensure flicker-free light transitions and rich colors. Thanks to the capacitive load, the controller is especially compatible with modern LED lamps and ensures stable performance.

Practical Functions for Individual Light Control

The device offers two scene memories, allowing you to save your preferred lighting configurations and recall them at any time. Additionally, the controller is compatible with motion and presence detectors as well as time switches and timers. This enables automated lighting controls tailored exactly to your needs. Connection to radio buttons and conventional switches is also easily possible, significantly increasing the versatility of operation.

Easy Installation and Safe Connection Options

The controller is designed for surface mounting and has an installation depth of 17 cm. Connection is made via terminal blocks, which guarantee a quick and secure connection. The IP protection class IP20 indicates that the controller is protected against contact but offers no protection against water. The robust housing ensures a long service life and reliable function even with continuous use.

Memory Function and Extended Application Possibilities

A special highlight of the controller is the integrated light value memory, which retains saved settings even after a power failure. This ensures comfortable and reliable control without the need to reset. The combination of versatile control options, easy installation, and high performance makes the RGB+W PWM controller from ISOLED an optimal solution for anyone who wants to control their LED lighting individually and intelligently.
