emergency light EASYLIGHT 1000 round IP20, black dimmable

High-Quality LED Emergency Light Module for Reliable Safety

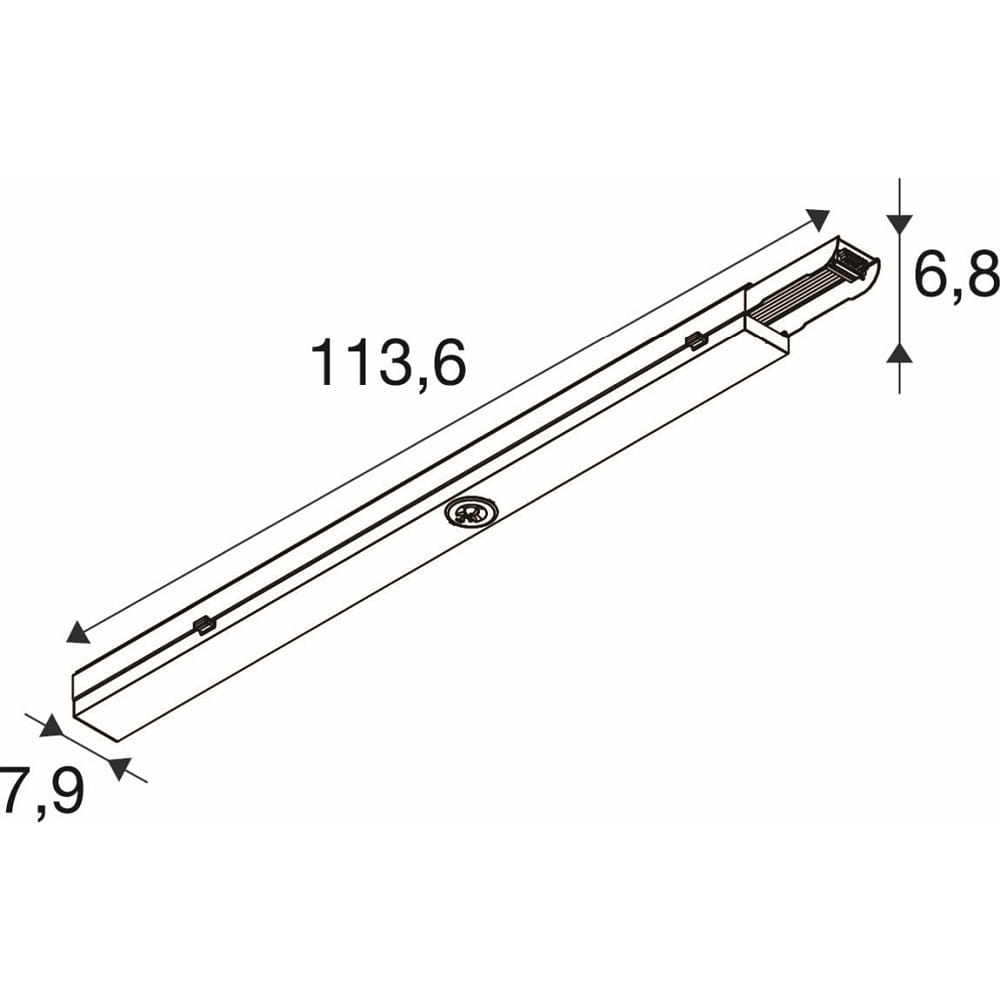

The EASYLIGHT 1000 LED emergency light module from SLV delivers cool, clear light with a power of 3 watts and a color temperature of 5000 Kelvin, providing 450 lumens for optimal visibility. Thanks to a luminous efficacy of 150 lumens per watt, the module operates with high energy efficiency. Its compact design, measuring 100 x 6.5 x 6.8 cm with an outer diameter of 5.7 cm, allows flexible integration into various light strip systems. The emergency light module features a high-quality black aluminum housing that is robust and durable.

Easy Control Thanks to DALI Dimming Function

The EASYLIGHT 1000 LED emergency light module is equipped with DALI dimmability, enabling simple and precise control of light intensity. Thanks to the current-controlled LED driver technology, the module can be operated efficiently and safely. The driver is included in the delivery and can be easily replaced if necessary, simplifying maintenance and servicing. With protection class 1 and an IP20 rating, the module is well protected against contact and dust.

Optimal Light Distribution and Technical Details

The emergency light module emits light in parallel with a beam angle of less than 5 degrees, ensuring targeted illumination. It features a conductor cross-section of 2.5 mm², providing a safe and stable electrical connection. The light is non-adjustable, guaranteeing consistent and reliable light distribution. The operating voltage ranges from 220 to 240 volts, allowing for wide application. Protection class 1 adds extra safety during use.

Efficient Emergency Lighting for Various Applications

The EASYLIGHT 1000 LED emergency light module is ideal as an emergency lighting solution. With a constant light output of 450 lumens at an energy consumption of only 3 watts, it provides a reliable light source during emergency operation. The module is specially designed for use in emergency lighting systems and ensures high operational safety. The combination of durable LED technology and easy usability makes this product an efficient and economical choice.

Robust Design and Easy Installation

The black aluminum housing of the emergency light module offers an attractive appearance while protecting the electronic components. Its compact form factor facilitates installation in existing systems without taking up much space. The module is non-adjustable, simplifying mounting and ensuring consistent light distribution. With the included driver, the module is ready for immediate use, allowing for quick and straightforward commissioning.
