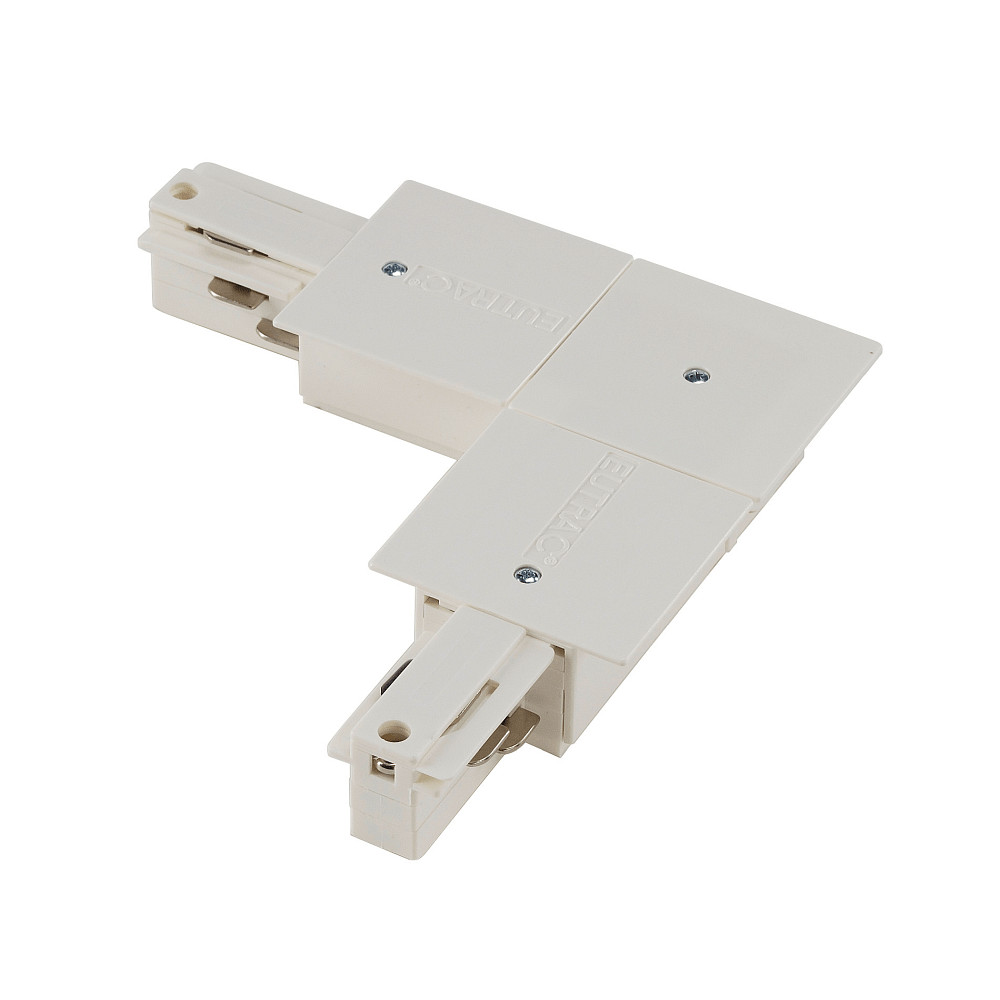

EUTRAC Corner connection for 3-Phase high-voltage recessed track, protective conductor inside, white

Eutrac

Are you a retailer or business customer (commercial/freelancer)? Secure special B2B prices now.
To business registration
Corner connector with feed capability for the 240V 3-circuit recessed track system. Constructed for even level installation, you can also choose the ground conductor's position left or right depending on your individual installation. More detailed information can be provided on request. Please note that the white tone will be changing from RAL 9010 to RAL 9016 (traffic white) on 1st April 2018. More information can be found under Product Information in the Service" / Downloads area.
Colour:
white
Dimension:

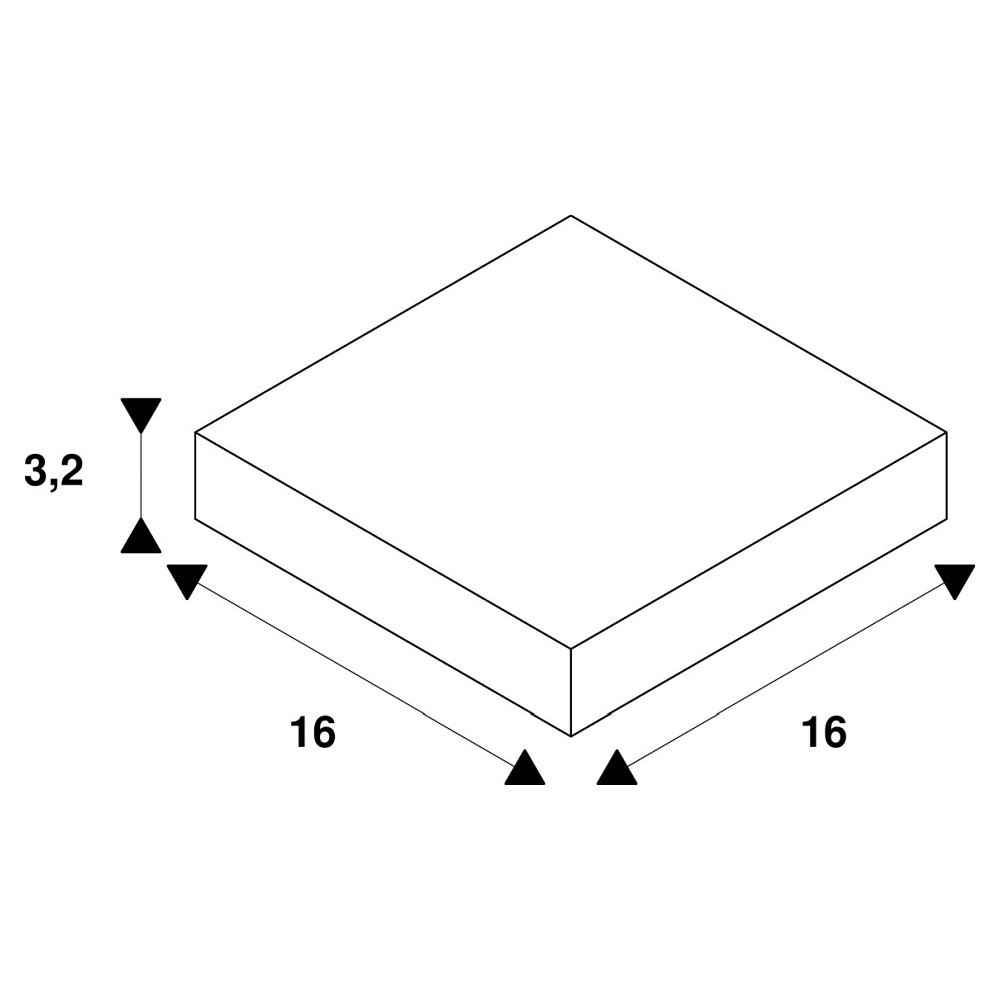

Abmessungen-L∕ W∕ H: 16∕ 16∕ 3,2 cm
Material:
plastic
metal
Weight:
0.174 kg
Product type:
3-phase corner connector
Application area:
only suitable for indoor use
Field of application:
ceiling
wall
Operating voltage:
220-240 V~
Dimmable:
yes
Dimmability:
analog 1-10V, TRIAC
Power frequency:
50/60 Hz
Max. current carrying capacity:
3x 16 A
Mounting:
recessed mounting
track based mounting
Protection class:
1
IP-protection class:
IP20
Product has been tested for it's electromagnetic compatability by the VDE (radio protected sign):
yes
Additional information:
Only for EUTRAC 3-phase built-in track
RAL 9016 traffic white
Follower for:
145751
Article number:
1001537
Purchasing quantity:
1 piece
Brand:
Eutrac
Manufacturer:
Eutrac
Manufacturer information
Eutrac Stromschienen GmbH, Volkmarstraße 18, 12099, Berlin, Germany, service@eutrac.de, https://eutrac.de
